Thick Fabric Digital Printing Machine

High Penetration · High Color Fastness · Green Intelligent Manufacturing

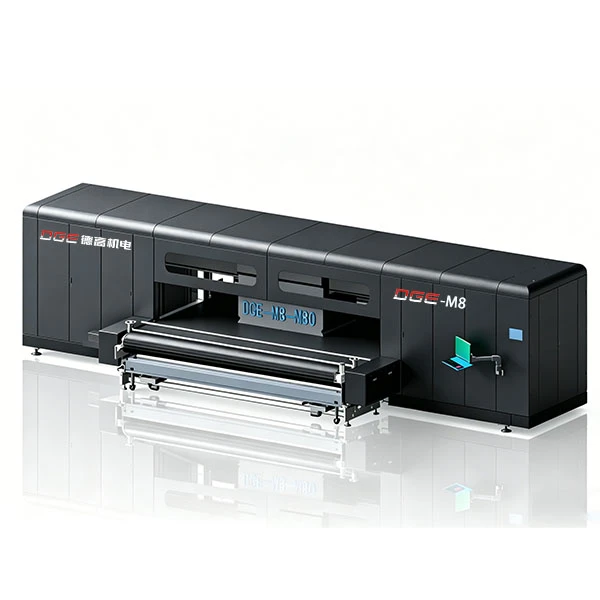

The DGE-M8 is Thick Fabric Digital Printing Machine specially developed for thick carpets and heavy fabrics. Equipped with industrial-grade Seiko printhead modules and a constant-temperature intelligent ink path control system, it delivers ultra-high printing speed, wide color gamut performance and outstanding adaptability to thick materials.

Compatible with four major textile inks including high-temperature disperse, acid, pigment and reactive inks, it is widely used for mass printing of carpets, heavy home textiles, woven fabrics and decorative thick cloths.

Comprehensive Equipment Advantages

• Customized design for thick materials: Adjustable printhead height of 3.5–5 mm thoroughly eliminates fabric scraping and ink splashing issues during carpet printing.
• High-volume production with Seiko printheads: Multiple printhead and channel configurations available, with a maximum production capacity of 1,450 m²/h to meet mass production orders for factories.
• Full compatibility with four ink types: One machine supports printing on thick fabrics such as polyester, nylon and blended materials.
• Constant-temperature multi-stage filtration ink path: Prevents ink crystallization and printhead clogging, extends service life of consumables, and ensures stable production with minimal downtime.






Core Configurations
Seiko RC1536 Industrial Printheads
The machine is standard-fitted with Seiko RC1536 piezoelectric printheads, supporting multiple printhead layout options: 6×5/6×10 and 8×5/8×10. Two channel layouts (10-channel symmetric / 20-channel symmetric) are available for flexible selection according to production capacity requirements, with printing resolution ranging from 360 dpi to 1440 dpi.


Full Ink Compatibility
Wide ink adaptability: Compatible with four mainstream textile printing inks-high-temperature disperse, acid, pigment and reactive inks. It enables direct printing on all kinds of thick fabrics including polyester, cotton, linen, silk and nylon.


Constant-Temperature Multi-Stage Filtration Intelligent Ink Path System
Constant-temperature ink control for stable viscosity: The system maintains constant ink viscosity throughout the printing process to precisely control ink droplet shape and ejection trajectory. It avoids problems caused by workshop temperature and humidity fluctuations, low-temperature crystallization and ink precipitation, ensuring consistent color output and uninterrupted ink supply during long-hour high-speed printing.

Application Scenarios

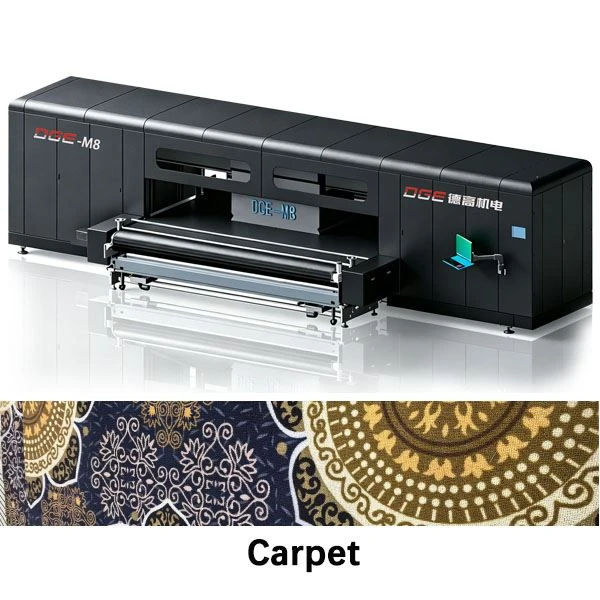

Household decoration: Printed home carpets, bedside rugs, decorative plush mats
Commercial projects: Wall-to-wall carpets for hotels, office buildings and shopping malls

After-Sales Service Guarantee

Complete Machine Warranty Policy
Standard warranty service is provided for the whole machine. Core hardware including machine frame, drive motors, constant-temperature ink path systems and main control circuit boards are covered under a 1-year free warranty.

On-Site Installation, Commissioning & Training
After the equipment arrives at the customer's factory, professional engineers will be dispatched to complete full machine installation on-site, and train operators to operate the machine independently for mass production.
