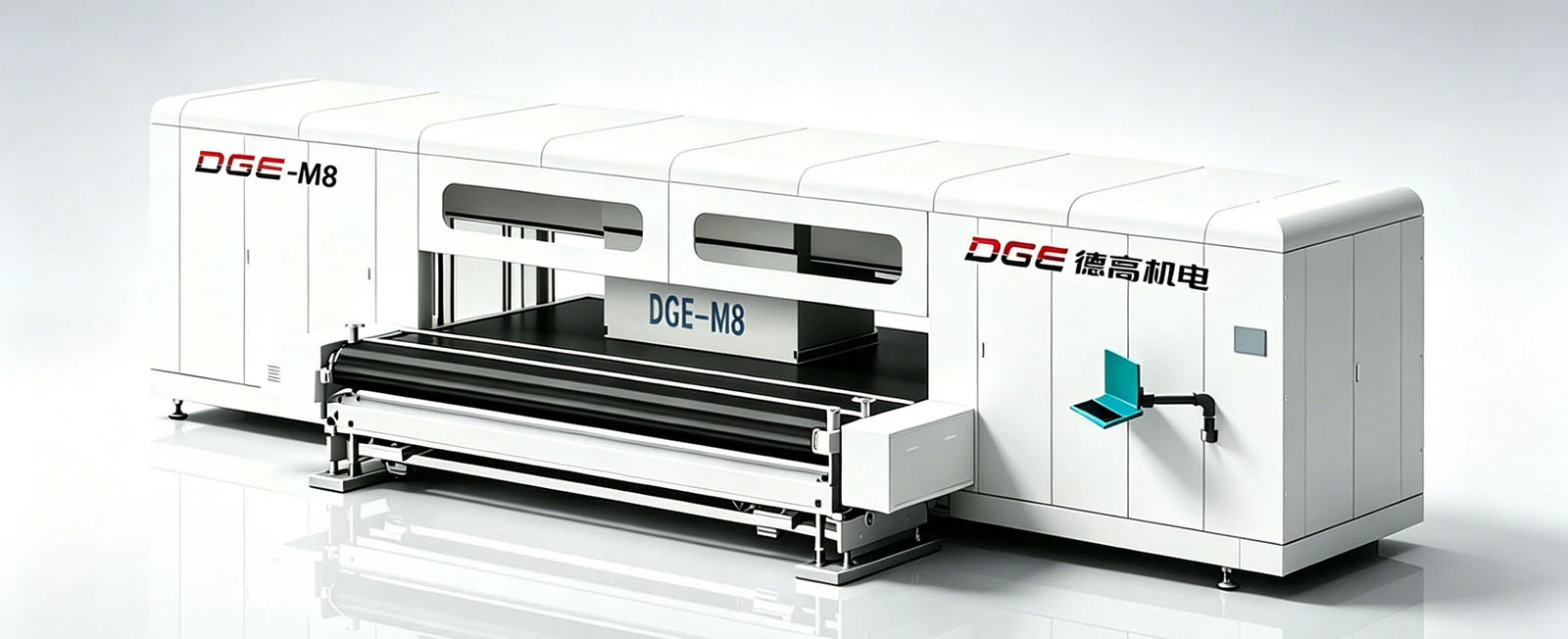

The DGE‑M8 Beach Towel Digital Printing Machine is custom‑developed for home‑textile beach towels. It integrates cutting‑edge digital printing technology and industrial‑grade production capacity, enabling manufacturers to complete efficient conversion from design to finished goods and create top‑selling beach towels with attractive appearances and reliable quality.
The outstanding performance of DGE beach towel digital printer stems from meticulously manufactured core components and their precise coordination. Prioritizing production efficiency and print quality, we have optimized component design to guarantee long‑term stable machine operation.
Advantages
Main Machine Components
Industrial‑Grade Print Heads
High‑precision micro‑piezo printheads (Seiko / StarFire) are adopted to deliver accurate multi‑colour printing with CMYK and optional spot colours. The printing resolution hits 1200 dpi for uniform ink‑drop size. It effectively prevents nozzle clogging and ink leakage, delivering sharp printed details and smooth colour gradients.
Intelligent Ink Supply System
Large‑capacity ink tanks enable continuous ink feeding to eliminate frequent refills during production. Equipped with an ink‑circuit circulation unit and constant‑temperature module, the system keeps ink well‑mixed and greatly reduces print‑head blockage risks.
Precision Transmission System
Imported servo motors and timing‑belt transmission structure ensure smooth movement and accurate positioning. The setup prevents fabric shifting and wrinkling throughout printing and improves registration precision.
Smart Temperature‑Control & Drying System
Tailored for beach‑towel fabrics, the adjustable temperature‑control unit allows flexible drying‑temperature settings for different materials. It accelerates ink curing to stop ink bleeding and colour‑fastness loss after printing. The evenly‑heated drying module delivers consistent fabric heating, enhances colour fastness and avoids fabric damage.
For more detailed information, please contact us to obtain the product brochure.
Applications
Boasting flexible customisation capability and dependable running performance, the beach‑towel digital printer serves diverse sectors and helps clients boost profits.
●Home‑textile Manufacturers
Mass‑produce standard printed beach towels and accept small‑batch custom orders to expand product lines and raise added‑value. The equipment accommodates offline wholesale, e‑commerce and other sales channels.
●Outdoor‑goods Suppliers
Manufacture printed beach towels suited for beaches, swimming pools, camping and other outdoor‑use scenarios. You can develop practical, eye‑catching merchandise aligned with outdoor‑goods market trends.
Get in touch with us now for sample printing service, so you may inspect print quality and visual effects in‑person.
Hot Tags: beach towel digital printing machine, China beach towel digital printing machine manufacturers, suppliers, factory, Thick Fabric Digital Printing Machine, thick fabrics digital printing machine
| Name | Beach Towel Digital Printing Machine | ||||
|
Product model |
DGE-M8-200 |
DGE-M8-260 |
DGE-M8-320 |
||
|
Print head |
Type |
Japanese industrial printheads Seiko RC1536 Series / StarFire SG1024 Series |
|||
|
Arrangement |
Seiko RC1536： 4×5 / 4×10 6×5 / 6×10 8×5 / 8×10 |
||||
|
StarFire SG1024: 7×5 / 7×10 10×5 / 10×10 13×5 / 13×10 |
|||||
|
Color Sequence |
10-channel symmetric / 20-channel symmetric |
||||
|
Precision |
Seiko RC1536 : 360dpi - 1440dpi |
||||
|
StarFire SG1024 : 400dpi - 1600dpi |
|||||
|
Working Jet Distance(mm) |
Seiko RC1536 : 7 ~ 11 mm |
||||
|
StarFire SG1024 : 3.5 ~ 5 mm |
|||||
|
Guide belt |
DGE Specialized Aramid Conveyor Belt |
||||
|
Max print width |
2000mm |
2600mm |
3200mm |
||
|
Machine speed |
DGE-M8-S |
1 pass |
800 m2/h |
900 m2/h |
1000 m2/h |
|
2 pass |
420 m2/h |
470 m2/h |
520 m2/h |
||
|
DGE-M8-M |
1 pass |
1120 m2/h |
1300 m2/h |
1480 m2/h |
|
|
2 pass |
620 m2/h |
700 m2/h |
780 m2/h |
||
|
DGE-M8-L |
1 pass |
1440 m2/h |
1700 m2/h |
1960 m2/h |
|
|
2 pass |
820 m2/h |
930 m2/h |
1040 m2/h |
||
|
Compatible ink |
Ink type |
High-temperature dispersion, Acidity, Pigment Ink, Active ink |
|||
|
Ink color |
Cyan C,Magenta M,Yellow Y,Black K,Orange O,Bright red R,Sapphire blue B , Green G ;optional LM,LC,LK |
||||
|
Print media |
Toilet towels, beach towels, towel blankets, circular wool fabric |
||||
|
Software |
Spanish RlP software |
||||
|
Image Type |
File format: TIF/JPG/EPS/PDF,Color pattern: RGB/CMYK |
||||
|
Data Transmission |
Gigabit fiber/ USB3.0 |
||||
|
Functional |
Belt drying |
Hot air drying system |
|||
|
ink supply system |
Industrial-grade negative pressure degassing ink supply print head ink internal circulation function |
||||
|
Intelligent cleaning |
Automatic cleaning and automatic moisture retention |
||||
|
Washing system |
Double-brush roller ,Double clean roller Double-layer sponge ,Intelligent Sprinkler Water-removing air knife Multiple drying |
||||
|
Work Environment |
Power supply |
Three-phase five-wire system,50HZ |
|||
|
Power |
Printing system：20KW ,Heating system：20-80KW |
||||
|
Air pressure |
0.6~0.8Mpa,manual adjustment |
||||
|
Temperature and humidity |
Ambient temperature:Recommended 25-30℃ Ambient humidity:Recommended 60-80% |
||||
