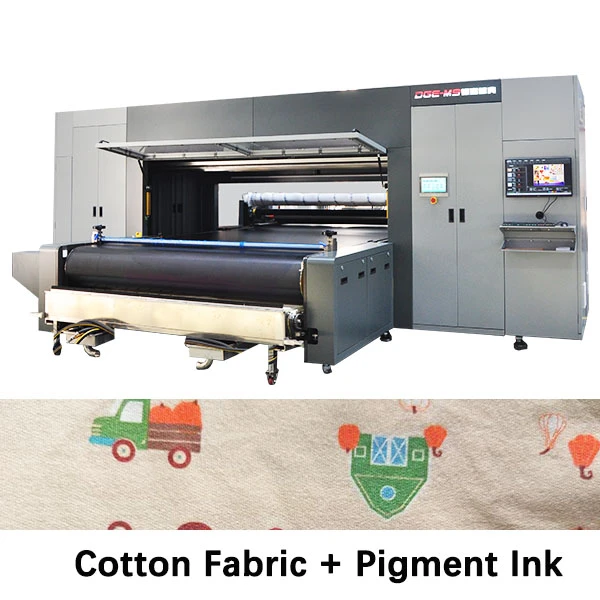

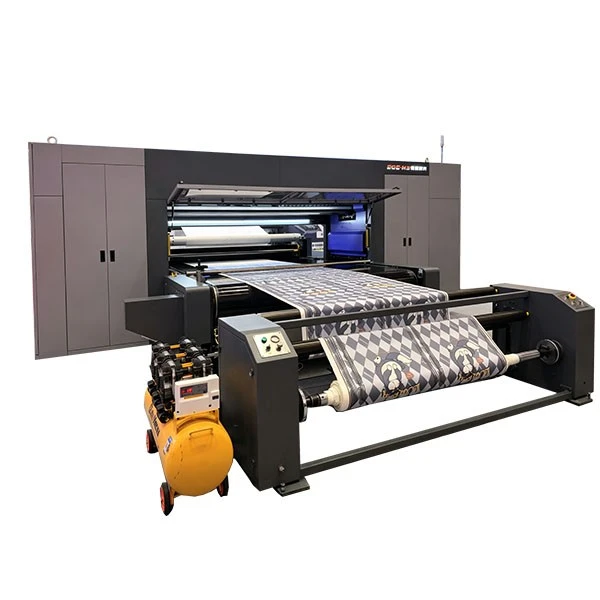

This industrial‑grade Baby Fabric Digital Printing Machine is tailor‑made for cotton knit fabrics, specially developed for printing scenarios of babies' close‑fitting garments, maternal‑infant home textiles and skin‑friendly cotton fabrics.
Engineered to meet exclusive printing requirements for baby‑grade fabrics, Digital Printing Machine adopts an eco‑friendly pigment ink direct‑to‑fabric printing process. The finished prints are soft and skin‑friendly with mild colors and zero skin irritation, fully complying with strict quality inspection standards for babies' wear. It serves as the preferred printing equipment for maternal‑infant fabric printing and custom cotton fabric printing.
|
|
|
|
| Ricoh Industrial‑Grade Printheads | Dual Anti‑Ink‑Mist Design | Reinforced Dual‑Beam Structure |
Core Hardware Configuration
Ricoh Industrial‑Grade Printheads
Delivers fine and uniform ink droplets with precise ejection and high‑fidelity color reproduction. It perfectly handles light‑toned gradients, fine lines, delicate cartoon patterns and other designs for baby fabrics, achieving high‑definition and exquisite printing results for maternal‑infant textiles.
Dual Anti‑Ink‑Mist Design
To solve the common ink‑mist pollution issue in digital printing, the machine is equipped with a dual anti‑ink‑mist structure: built‑in ink‑mist suction device on the printing carriage + full‑coverage ink‑mist suction system at the top of the machine.
Reinforced Dual‑Beam Structure
Adopts an integrated thickened industrial dual‑beam design with strong load‑bearing capacity and excellent stability. It eliminates beam deformation, shaking and offset problems caused by long‑term high‑speed operation of traditional single‑beam printers.
|
|
|
Successful Client Cases
This printer has been widely used for fabric printing of babies' close‑fitting clothes, cotton saliva bibs, maternal‑infant swaddling blankets, children's knitwear and more. It has served numerous maternal‑infant fabric printing factories and apparel customization enterprises.
Printing for Baby Close‑Fitting Garment Fabric
Fabric Width: 180 cm
Pattern: Cartoon
Ink: Pigment Ink
|
|
|
Flexible Model Selection
2 optional models are available to satisfy diverse production requirements and budgets.
●32‑Printhead Standard Model
High cost‑performance. Ideal for medium‑and‑small processing factories, start‑ups and small‑batch custom orders. It delivers sufficient daily output, low maintenance cost and user‑friendly operation for new operators. Balancing quality and budget, it is the top choice for clients with medium‑to‑low production capacity.
●64‑Printhead High‑Speed Model
High‑volume production version with doubled printing speed and greatly‑improved productivity. Suitable for large‑scale printing factories and mass‑production orders with a daily output of over 1000 fabric rolls. It maintains high‑definition printing quality even at high‑speed operation, delivering stable and efficient performance for large‑scale mass production.
Contact us now to get your customized solution for 32‑head & 64‑head printers.
Click to inquire
and get detailed quotations, real‑factory production case studies and videos, and free sample printing services.
Hot Tags: baby fabric digital printing machine, China baby fabric digital printing machine manufacturers, suppliers, factory, apparel textile digital printer, belt fabric printer, knitted fabric printing machine, large format textile printer, Reactive Digital Fabric Printer, Wide format Industry Direct Textile Printer
| Products Name | Baby Fabric Digital Printing Machine | ||||
| Product model | DGE-M929-200 | DGE-M929-240 | DGE-M929-280 | DGE-M929-340 | |
|
Print head |
Type | Japanese industrial print head Ricoh Printheads | |||
| Arrangement | 4×8 | ||||
| Quantity/Color | 32heads/8colors | ||||
| Guide belt | Habasit | ||||
| Max print width | 1850mm | 2250mm | 2650mm | 3250mm | |
|
Machine speed (8 color mode) |
1 pass | 1100m²/h | 1300m²/h | 1500m²/h | 1700m²/h |
| 2 pass | 600m²/h | 700m²/h | 800m²/h | 900m²/h | |
| 3 pass | 280m²/h | 350m²/h | 450m³/h | 600m²/h | |
|
Compatible ink |
Ink type | Coating,active ink,high-temperature dispersion,acidity | |||
| Ink color | Cyan C,magenta M,Yellow Y ,Black K,Orange O,Bright red R,Sapphire blue B,Green G;optional LM,LC,LK | ||||
| Print media | Cotton,linen,silk,wool,chemical fibers,blends and a variety of new fiber woven and knitted fabrics | ||||
| Software | Spanish RlP software | ||||
| Image Type | file format：TIF/JPG/EPS/PDF,color pattern：RGB/CMYK | ||||
| Data Transmission | Gigabit fiber/USB3.0 | ||||
|
Functional |
Fabric feeding system |
Automatic constant tension feeding Knitted (elastic) fabric feeding system Adjustable Tension Warp Separation and Fabric Feeding System Movable pressure roller |
|||
|
Print head Height |
2~30mm(Adjustable) | ||||
|
Fabric drying |
Hot air drying system | ||||
| ink supply system | Industrial-grade negative pressure degassing ink supply,print head ink internal circulation function | ||||
| Intelligent cleaning | Automatic cleaning and automatic moisture retention | ||||
| Washing system |
Double-brush roller,Double clean roller, Double-layer sponge,Intelligent Sprinkler, Water-removing air knife,Multiple drying The magnetic rod collects water |
||||
| Work Environment | Power supply | 380VAC±5%,(Three-phase five-wire system),50HZ | |||
| Power | Printing system：20KW(Heating system)：20-80KW | ||||
| Air pressure | 6~8Mpa(manual adjustment) | ||||
| Temperature and humidity |
Ambient temperature:Recommended 25-30℃ Ambient humidity:Recommended 60-80% |
||||
| Dimension | Machine size(mm) | 5000*5600*2450 | 5000*6000*2450 | 5000*6400*2450 | 5000*6800*2450 |
